HFDZT5800/4800

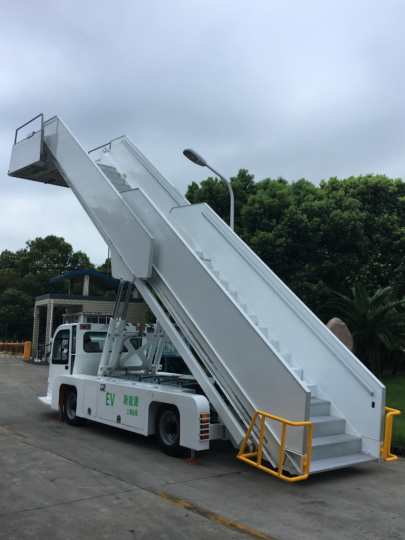

HFDZT4800/5800electric passenger boarding stairs is researched and developed by the HangFu company for taking the passenger on or off the airplane.It is for broarding and debroading to and from aircraft with still door height from 2200 0to 5800mm.This vechiel adopts AC frequency conversin control system with international brand, equiped with AC driving motor for lang time run, hydraulic steering Axel, traversing oil tank,Ful1 hydraulic steering dual circuit hydraulic assistant system, hydraulic disc and drum brake, special axle made by itself. Main parts all imported the international famous brand, they are stable and easily to repair.Hydraulic lift-down system,PLC Mitsubishi electrical control system and MURPHY touch screen display combined together,

WMCO shiftlever. This type passenger stairs can meet with all types of airplane to use including the low cabin door aircraft.It is simple, safe, and with advanced design from the inside function and outline.



  • Product Specifications
  • Pictures Drawings





Models

HFDZT4800

HFDZT5800

Overall Dimension (mm)

L7540× W2200×H3400 L7750×W2400×H3800

Platform Dimension (mm)

L2150×W1760 L2150×W1960

Wheelbase (mm)

2900 3200

Drive Type

4×2 4×2

Minimum Turning Diameter(mm)

15000

15000

Weight (kg)

W6500 <9800

Front Axle Carrying Capacity (kg)

7000 7000

Rear Axle Carrying Capacity (kg)

5000 5000
Recharging Time (h) 5-6     1-3(Fast charging)     0. 5-3(Fast charging)
Travelling Clearance (mm) 80~160 (Lean—acid battery can reach)
Battery At Option 80V>300-360V     Lean-acid Battery
