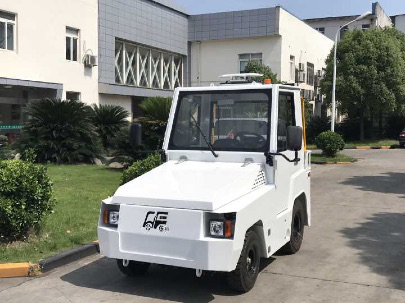

HFDQY250/350/250F is a green product developed by Shanghai Hangfu Airdrome Equipment Co.,Ltd. This is a non-polluted, low noise level with high towing capacity suitable for those required a high hygiene level or those required a high towing capacity up to 30/45 tons. It is easily operated and low maintenance cost.It is with rear driven axle. front disc brake, rear drum brake, hydraulic steering and European and American electric controller. European Lead-Acid battery/Lithium battery.It is suitable for aviation,military, railway, post office, logistic, manufacturing and medical industries. The power pack can be easily swapped.
|
Draw Bar Pull (KN) |
25 |
35 |
|
Max Towing Capacity ( kg) |
||
Overall Dimension (mm) |
L3250 |
|
|
W1415 |
||
|
H 1520 (with cab 1940 ) |
||
|
Wheelbase (mm) |
1570-1580 |
|
|
Minimum Turning Diameter (mm) |
5900 |
|
|
Ground Clearance ( mm) |
120-165 |
|
|
Weight (kg) |
4400 | 5300 |
|
Recharging Time ( h ) |
5-6 1-3(Fast charging) 0. 5-3(Fast charging) |
|
|
Travelling Distance ( km) |
100~160 (Lean-acid battery can reach) |
|
|
Battery At Option |
80V、 300~360V Lean-acid Battery |
|
Features
Battery:Powered by either lead-acid or li-ion power pack
Braking System: Dual circuit hydraulic brake with front disc and rear drum
Axle:Rear driving axle
Steering System: Hydraulic steering
Suspension:Spring leaf suspension
Tow Hitch Height:250-400mm
Tire:Pneumatic tire
Charger: Support smart charger
Options
1.Driving Cab
2.Heater
3. Wheel Chock
4.Spring leaf and hydraulic suspensions
5.Emergency Hydraulic steering
6.Tire inflate gauge
7. Charger
8. Standby power pack
9.Lead-acid power pack self-leveling fluid system
10.Lead-acid power pack cycling system
11.Reverse bruiser
12. Tow hitch lifting handle inside driving cab
13.Rear tow hitch warming device
14.Auto release tow hitch
